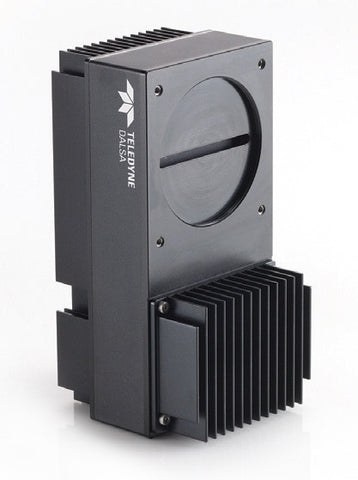

Piranha HS Mono 6K HSLink
Piranha HS Series: Piranha HS 6K, 142khz
6k resolution and 142 kHz line rate
The Piranha HS 6k camera with a maximum line rate of 142 kHz is the newest member of the HS family of high sensitivity line scan cameras.
The HS 6k camera is capable of bidirectional operation with up to 256 stages of selectability, while preventing overexposure with antiblooming features. Camera configuration is flexible and all software is controllable.
FEATURES
The HS 6k camera is capable of bidirectional operation with up to 256 stages of selectability, while preventing overexposure with antiblooming features. Camera configuration is flexible and all software is controllable.
FEATURES
- 6,000 pixels
- 10.4 ÌÇ_m pixel size
- Max 142 kHz line rate
- Responsivity 1200 DN/(nJ/cm̴_) @ 0 dB, 8 bit
- Bidirectional
- Antiblooming
- HSLink interface
- Resolution: 6,000 x 256 pixels TDI
- Data Rate: Up to 852 Mpix/s
- Max. Line/Frame Rate: 142 kHz
- Pixel Size: 10.4 ÌÇ_m x 10.4 ÌÇ_m
- Data Format: 8, 10, or 12 bit
- Output: HSLink
- Lens Mount: M72 x 0.75
- Responsivity: 1200 DN/(nJ/cm̴_) at 0 dB, 8 bit
- Dynamic Range: 500:1
- Nominal Gain Range: 0 dB to 20 dB
- Size: 180 mm (H) x 90 mm (W) x 92.1 mm (D))
- Mass: < 1500 g
- Operating Temp: 0 ̴åÁC to 50 ̴åÁC
- Power Supply: 24 VDC
- Power Dissipation: < 44 W
- Regulatory Compliance: RoHS and CE
- Control: HSLink
- Data: Shared with Control
- Power: Lemo 2 pin
