Piranha HS Series: Piranha HS 8K, 34khz

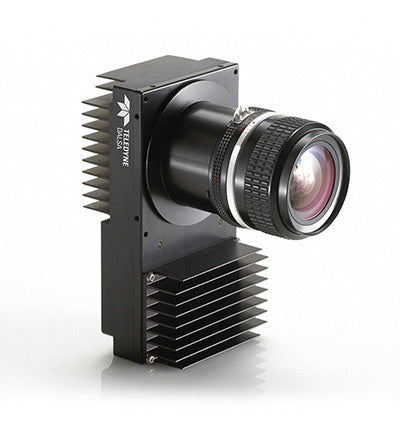

The HS-80-08K40 is a member of the Piranha HS family--DALSA's latest generation of high sensitivity, TDI based cameras. The Piranha HS family maximizes system throughput by providing large resolutions and unmatched throughput.

The camera delivers unprecedented line rates up to 68.6 kHz and a throughput up to 320 MHz. Camera configuration is extremely flexible and the number of Camera Link taps, throughput, and line rate are all software controlled.

The 8k40 model has a line rates up to 34 kHz and a throughput up to 320 MHz. Camera configuration is extremely flexible and the number of Camera Link taps, throughput, and line rate are all software controlled.

FEATURES

• Line rates up to 34.3 kHz
• Up to 320 MHz throughput
• Bidirectional
• Selectable TDI or area mode operation
• Stage selectablity up to 96 stages
• 100x antiblooming
• Camera Link interface
• RoHS compliant
• Resolution: 8192 x 96 TDI
• Data Rate: 320 MHz
• Max. Line/Frame Rate: 34.3 kHz
• Pixel Size: 7 µm
• Data Format: 8, 12 bit
• Output: Med. Camera Link
• Lens Mount: M72 x 0.75
• Responsivity: 1170 DN/(nJ/cm̴_)broadband,8 bit,10 dB
• Dynamic Range: 56 dB
• Nominal Gain Range: ̴å±10 dB
• Size: 150 mm x 80 mm x 65 mm
• Mass: <800g
• Operating Temp: 0 ̴åÁC to 50 ̴åÁC
• Power Supply: 12 V to 15 V
• Power Dissipation: <15 W (40 MHz) / <20 W (80 MHz)
• Regulatory Compliance: CE and RoHs
• Control: MDR26 Camera Link
• Data: Shared with control
• Power: Hirose HR10 6 pin
